SA Professional Leveling Systems
Professional Levelling for Large Formats
The SA Levelling System allows for a larger surface area for the ceramic to grip when adjusting the wedge with the shim. It has a greater distance or clearance at the bottom of the piece and therefore a wide wedge is used.
It is designed to achieve the levelling of tiles on any surface, avoiding movement of the ceramic pieces during setting. With our system, a reduction in the laying times of the porcelain stoneware and perfect levelling are achieved.
BENEFITS OF OUR SA PROFESSIONAL TILE LEVELER SYSTEM
Larger work surface
Saving time and costs in the process
Leaves no plastic residue
Octagonal base for perfect grip
Easy to install and remove
Does not cause breakage or damage to the material
Easy to install. Wider wedges
1 - Installation is quick and easy due to the shape of the wedge. Levelling is done by inserting the wedge either manually or using professional pliers.
2 - The use of spacers or spacers is recommended for tiling.
3 - The ceramic should be lightly tapped to release excess load and allow the necessary time for the adhesive to set before removing it.
4 - To remove the wedge, once the adhesive has set, it can be done with a blow or with the help of a mallet.
5 - The wedges are reusable and very resistant to impacts, so they can be used again in the future, generating less waste.

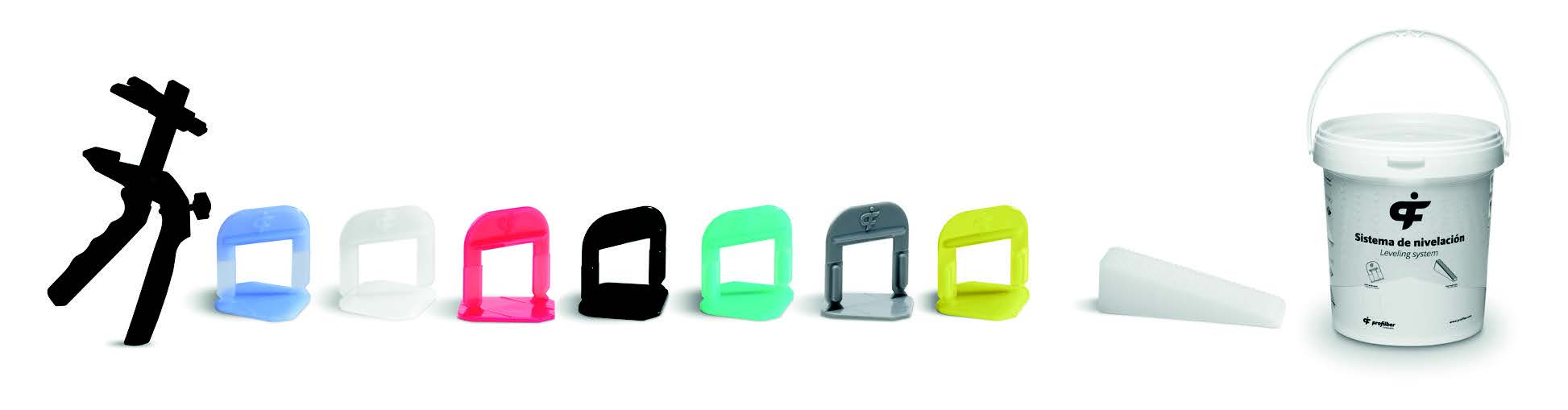

SA Width Leveling System Components
Crosshead
Profilber crosshead have a larger surface area on the underside for greater stability and better grip on the ceramic when laying. The octagonal shape of the underside makes it easier to place the shim with greater precision and to remove the upper part later, once the bonding material has set.

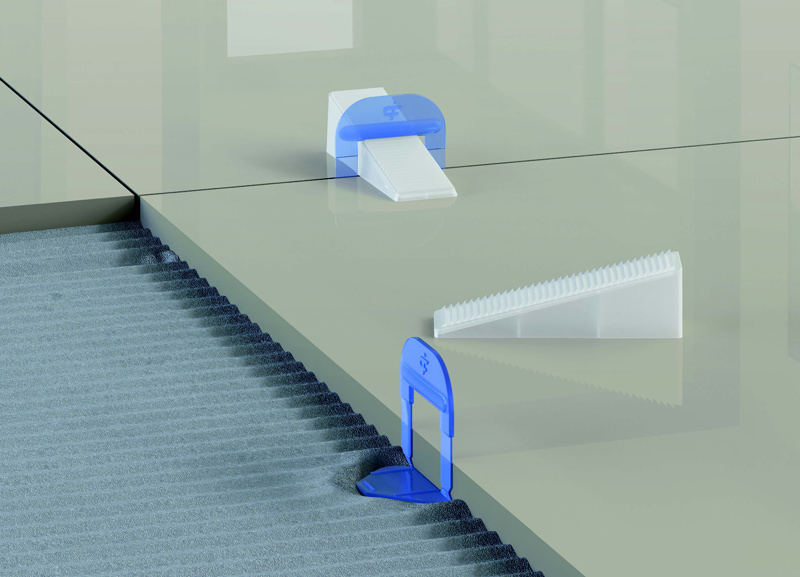

Wedge
The wedges align the surfaces of the adjoining pavements, avoiding the appearance of “eyebrows”, guarantee a perfectly level surface and give consistency to the installation, avoiding movement of pieces during the setting of the bonding material. They are reusable and offer maximum resistance to impacts, which means cost savings as well as reducing waste.
Ceramic crosshead 0,5mm
Blue
Ceramic crosshead 1mm
White
Ceramic crosshead 1,5mm
Red
Ceramic crosshead 2mm
Black
Ceramic crosshead 3mm
Green
Ceramic crosshead 4mm
Grey
Ceramic crosshead 5mm
Yellow
How many pieces do you need?
The table shows you how to calculate the number of crossheads needed.
You only have to take into account the measurements of the ceramic (A and B) chosen and the result is the necessary pieces per sq.ft.
Multiplying the number of crossheads that results by sq.ft., the total number of crossheads needed according to surface area is obtained.
Packing list
| GTIN-13 | Artículo | Embalaje (Uds.) |
Embalaje (cm.) |
Embalaje (kg.) |
|---|---|---|---|---|
| 8437021710557 | calzo/clip 0.5 mm 200 SA | 30 | 59x39x41 | 16,50 |
| 8437021710571 | calzo/clip 0.5 mm 400 SA | 12 | 59x39x41 | 19,80 |
| 8437021710595 | calzo/clip 1.0 mm 200 SA | 30 | 59x39x41 | 16,50 |
| 8437021710601 | calzo/clip 1.0 mm 400 SA | 12 | 59x39x41 | 19,80 |
| 8437021710908 | calzo/clip 1.5 mm 200 SA | 30 | 59x39x41 | 16,50 |
| 8437021710915 | calzo/clip 1.5 mm 400 SA | 12 | 59x39x41 | 19,80 |
| 8437021710618 | calzo/clip 2.0 mm 200 SA | 30 | 59x39x41 | 16,50 |
| 8437021710625 | calzo/clip 2.0 mm 400 SA | 12 | 59x39x41 | 19,80 |
| 8437021710632 | calzo/clip 3.0 mm 200 SA | 30 | 59x39x41 | 16,50 |
| 8437021710649 | calzo/clip 3.0mm 400 SA | 12 | 59x39x41 | 19,80 |
| 8437021710946 | calzo/clip 4.0 mm 200 SA | 30 | 59x39x41 | 16,50 |
| 8437021710953 | calzo/clip 4.0mm 400 SA | 12 | 59x39x41 | 19,80 |
| 8437021710960 | calzo/clip 5.0 mm 200 SA | 30 | 59x39x41 | 16,50 |
| 8437021710977 | calzo/clip 5.0mm 400 SA | 12 | 59x39x41 | 19,80 |
| 8437021710830 | cuña/wedge 100 SA (Blanca) | 30 | 59x39x41 | 24,90 |
| 8437021710847 | cuña/wedge 250 SA (Blanca) | 12 | 59x39x41 | 24,90 |
| 8437021710250 | PROTECTOR 100 | 12 | 59x39x41 | 16,50 |
| 8437021710274 | SUPLEMENTO 100 | 12 | 59x39x41 | 16,50 |
| 843702171073 | ALICATE SA (Negro) | 40 | 59x39x41 | 14,00 |
| GTIN-13 | Artículo | Embalaje (Uds.) |
Embalaje (cm.) |
Embalaje (kg.) |
|---|---|---|---|---|
| 8437021710656 | KIT NIVELACION 0.5 mm SA 200 | 4 | 59x39x41 | 14,00 |
| 8437021710663 | KIT NIVELACION 0.5 mm SA 400 | 2 | 59x39x41 | 9,45 |
| 8437021710670 | KIT NIVELACION 1.0 mm SA 200 | 4 | 59x39x41 | 14,00 |
| 8437021710687 | KIT NIVELACION 1.0 mm SA 400 | 2 | 59x39x41 | 9,45 |
| 8437021710694 | KIT NIVELACION 2.0 mm SA 200 | 4 | 59x39x41 | 14,00 |
| 8437021710700 | KIT NIVELACION 2.0 mm SA 400 | 2 | 59x39x41 | 9,45 |
| 8437021710717 | KIT NIVELACION 3.0 mm SA 200 | 4 | 59x39x41 | 14,00 |
| 8437021710724 | KIT NIVELACION 3.0 mm SA 400 | 2 | 59x39x41 | 9,45 |
| 8437021710748 | CAJA A GRANEL SA | 5000 | 59x39x41 | 20,00 |
